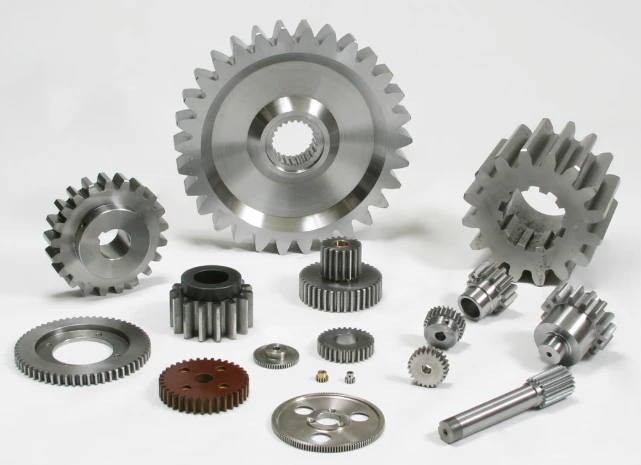

Hansheng Automation (Dongguan) Co., Ltd. is one of the most experienced manufacturers and suppliers of custom gear in China. If you're going to wholesale bulk cost-effective custom gear made in China, welcome to get pricelist and quotation from our factory. Also, customized service and OEM&ODM service are available.
Products Features
-
Custom Design: Precision manufacturing based on your 2D/3D drawings or non-standard requirements.
-
Wide Module Range: Flexible production with a module range from 0.1 to 5.0.
-
Diverse Tooth Profiles: Supports both Spiral teeth and Straight teeth for various bevel gears.
-
High-Grade Materials: Available in S45C steel, Stainless steel, and other high-strength alloys.
-
High Precision: Optimized for automation equipment and heavy machinery with smooth operation.
Technical Parameters
| Parameter Category | Standard Range | Customization Capability (Equipment & Process Support) |
| Module | M1~M8 | Japan KPS30 Gear Shaving Machine (Module M1–M6) / Ningjiang YK3610IV (Module M1–M8); Minimum Tooth Pitch Error: ±0.008 mm (for Module M2) |
| Teeth | Unlimited (General 12~200 teeth for reference) | The YK3610IV CNC Gear Hobbing Machine supports the machining of gears with a low tooth count (≥8 teeth) and non-integer gear ratios; the tooth profile error is ≤0.005 mm (as verified by a Coordinate Measuring Machine). |
| Pressure Angle | 20°±1° | The KPS30 servo system maintains an angular deviation of ≤ 5′; it is customizable to 14.5°, 15°, or 25°, with a contact spot coverage of ≥ 85%. |
| Precision Grade | ISO 5/GB 5/DIN 5 | Total profile deviation Fa ≤ 0.006 mm, total helix deviation Fβ ≤ 0.008 mm, total cumulative pitch deviation Fp ≤ 0.012 mm (for a face width of 100 mm). |
| Dimensional Tolerance | Inner diameter/Outer diameter/ Thickness ≤±0.01mm | Precision lathe secondary processing with ZEISS inspection compensation: Inner hole H6 tolerance (±0.008mm when ≤Φ100mm) Outer diameter roundness ≤0.005mm |
| Material | S45C, stainless steel, aluminum, copper, etc. | High-strength materials: 20CrMnTi carburized steel, 42CrMo quenched and tempered steel (grain size ≥Grade 6), RoHS/REACH certification supported |
| Heat Treatment | Quenching & tempering, high frequency, nitriding | Tooth surface hardness after nitriding ≥HV900, deformation ≤0.008mm, hard skiving process corrects HRC50 + material deformation |
| Tooth Surface Roughness | Ra 0.4~0.8μm | Mirror finish optional with Ra 0.2μm (KPS30 gear shaving machine fine finishing + super precision grinding) |
process
Our engineers develop high-precision models tailored to your requirements. We select premium steel grades-such as S45C, 42CrMo, or Stainless Steel-based on the required load capacity, durability, and wear resistance.
The process begins with preparing the steel gear blank using advanced CNC turning to ensure exact dimensions. Teeth are then cut using high-precision hobbing or milling machines to achieve the specific module and tooth profile you need.
To ensure long-lasting performance, the steel gears undergo professional heat treatment. Processes like Carburizing, Quenching, or Induction Hardening are used to significantly enhance surface hardness and core strength.
After hardening, gears are precision-ground to achieve a smooth surface and high transmission efficiency. Every gear passes strict quality control, including tooth profile accuracy and pitch error checks, complying with ISO or AGMA standards.
Applications
Industrial Automation
High-precision steel custom gears are the core components in robotic arms, indexing drives, and conveyor systems, ensuring smooth and synchronized motion in smart factories.
Heavy Machinery
Designed to withstand extreme torque and heavy loads, these custom gears are essential for construction equipment, mining machinery, and large-scale cranes.
CNC Machining Centers
Our custom gears provide the high transmission accuracy required for lathes, milling machines, and drilling equipment, maintaining long-term stability under high-speed operation.
Power Transmission
Used in industrial gearboxes, wind turbines, and automotive drivetrains to efficiently transfer power while resisting fatigue and wear over millions of cycles.
FAQ
Q: What information do I need to provide for a custom gear quote?
A: To give you an accurate price, we need your 2D/3D drawings (PDF, STEP, or CAD). Please also specify the material (e.g., S45C, Stainless Steel), module, number of teeth, and any specific heat treatment requirements.
Q: What is the typical lead time for custom gear production?
A: For standard custom orders, the production time is usually 15–25 days depending on the complexity and quantity. If special heat treatment or precision grinding is required, it may take slightly longer to ensure ISO-grade quality.
Q: Can you manufacture non-standard gears with specific modules?
A: Yes. We specialize in non-standard requirements. Our equipment supports a wide module range from 0.1 to 5.0, including both metric and inch systems, for spiral teeth, straight teeth, and various gear racks.
Q: How do you ensure the quality and precision of the gears?
A: Every gear undergoes strict inspection. We use advanced testing equipment to verify tooth profile accuracy, pitch errors, and surface hardness. All products comply with international standards like ISO or AGMA to ensure smooth operation in your machinery.
