Hansheng Automation (Dongguan) Co., Ltd. is one of the most experienced manufacturers and suppliers of planetary gear units in China. If you're going to wholesale bulk cost-effective planetary gear units made in China, welcome to get pricelist and quotation from our factory. Also, customized service and OEM&ODM service are available.
As a packaging machinery parts supplier with expertise in precision gear machining (ISO 5), ultra-precision CNC machining (mirror finish ±0.002mm), castings (Specified Tolerance: ±0.03mm), and a wide range of industrial control spare parts, we are fully capable of providing you with one-stop solutions. Our four major dividers are exported to over 60 countries worldwide, and we have partnered with and earned the trust of major companies such as India's Tata Group, South Korea's Samsung, and Huawei. Choosing us means you're the best partner.
Product Introduction

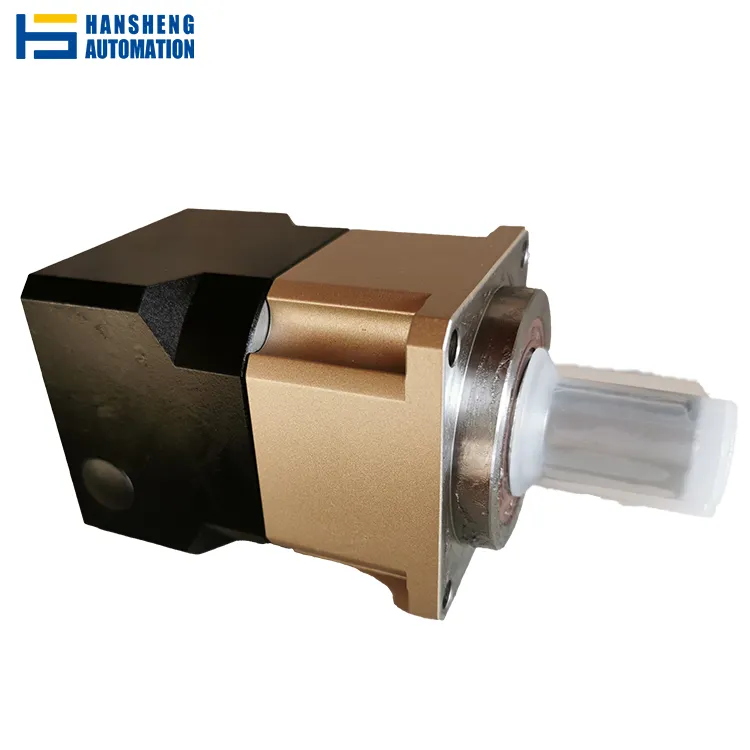

In applications such as heavy machinery rotation and robotic joints, equipment often faces the challenges of high torque requirements within limited space and motion deviations due to insufficient transmission precision. Hansheng Automation's PGH060 planetary gear unit is designed to address these challenges. Its compact "sun gear + planet gear + ring gear" structure (the L1 model has a total length of only 126mm) achieves high power density and uniform load distribution (multiple teeth engage simultaneously), making it a key choice for high-load precision transmission.
Features
Ultra-high power density: The integrated planetary carrier design is suitable for "small space + high load" applications such as cranes and heavy-duty robots.
Uniform load distribution: Three to four planetary gears simultaneously mesh with the sun gear and internal ring gear.
Micron-level transmission accuracy: The tooth profile is precision-ground (ISO Class 5 accuracy).
Flexible customization: Customization is available. We will provide a customized solution within 24 hours and deliver it within 7-15 business days. Compatible with mainstream servo motors.
product drawing and parameters
What factors do I need to consider when choosing a Planetary Gear Unit?
Requests for torque
For different industrial applications, torque requirements differ rather significantly. From its reduction ratio, the torque output capacity of a planetary gear unit results. When heavy loads, such cranes, heavy industrial robots, etc., need to be driven, a planetary gear unit with high torque output has to be selected. One can select the appropriate product by computing the required output torque and using the planetary gear unit reduction ratio formula (output torque = input torque × reduction ratio).
If an application requires an output torque of 1000N・m and the motor input torque is 100N・m, then at least 10:1 a planetary gear unit must be selected.
Needs for speed
Among speed factors are output and input speed. Choose the planetary gear unit depending on the final speed needed by the equipment and the motor speed in the real use. While selecting a suitable reduction ratio to lower the speed and increase the torque, some equipment that requires low speed and high torque, such mixers, must make sure the planetary gear unit can provide a sufficiently high output speed while meeting the torque requirements; and for some equipment that requires high speed, such high-speed centrifuges, it is necessary to make sure the planetary gear unit can meet the torque requirements.
A planetary gear unit with a 10:1 reduction ratio should be chosen if the motor speed is 3000 rpm and the equipment requires an output speed of 300 rpm.
Precise criteria
Transmission accuracy of the planetary gear unit is critical in precision equipment including optical instrument focusing systems, high-precision machine tools, etc. Angle transmission accuracy and return error constitute part of transmission accuracy. High gear manufacturing accuracy and small clearance during meshing of highly precise planetary gear units help to provide exact motion control.
In CNC grinders, the angle transmission accuracy of the planetary gear unit must be within ±0.01° and the return error must be rather small to guarantee the exact movement of the grinder spindle, so ensuring the machining accuracy of workpieces.
Limited space
Although the planetary gear unit is small in structure, different application situations call for different sized requirements. Selecting a small planetary gear unit is essential in some equipment with limited space, such small robot joints, internal transmission systems of aircraft equipment, etc., etc. One should take into account the dimensional parameters of the planetary gear unit, including its length and outer diameter, to make sure it may be placed in the designated equipment position.
Due to the limited space of the hand, the design of the hand joint of the humanoid service robot requires the selection of a small planetary gear unit; hence, the unit should be able to supply sufficient power to drive the finger movement in a limited space.
Financial considerations
Variations in planetary gear unit price depend on brand, accuracy, and torque capacity. Considering the application criteria, the cost has to be taken into whole account. Large-scale production machinery especially depends on cost control. But low-quality goods cannot be chosen only to cut expenses; else, issues including frequent equipment maintenance and shortened service life may follow.
Although the fundamental torque, speed, and accuracy requirements are satisfied in the conveyor belt drive system on a standard automated production line, a planetary gear unit with high cost performance can be chosen to lower the general equipment cost.
