Hansheng Automation (Dongguan) Co., Ltd. is one of the most experienced manufacturers and suppliers of rotary indexer for electronic parts test sorting in China. If you're going to wholesale bulk cost-effective rotary indexer for electronic parts test sorting made in China, welcome to get pricelist and quotation from our factory. Also, customized service and OEM&ODM service are available.
Are you still worried about the low efficiency or numerous errors in electronic component testing? Hansheng's 60DF flange cam indexer provides a positioning accuracy of ±30 arc seconds and can be customized for resistors, capacitors, ICs and sensors. In addition, we also provide a series of products such as Hollow Rotary Actuator, Planetary Reducer, Strain Wave Gears. In order to enable customers to solve their equipment parts problems in a one-stop manner, we also provide precision gear hobbing services, CNC parts, casting parts, FA parts. Trusted by more than 60 factories around the world (BYD, Huawei).
Products Description
In the face of industry pain points such as fluctuations in resistor sorting accuracy and unstable yield of integrated circuit testing, Hansheng Automation's 60DF series flange Rotary Indexer redefines the testing standard with a positioning accuracy of ±30 arc sec. Through deep collaboration with visual inspection systems and robotic arms, efficiency leaps, error zeroing, and flexible adaptation (customization up to ±15 arc sec) are achieved, and terminal applications cover the three core areas of consumer electronics, automotive electronics, and medical electronics.
Automated for categorizing, testing, and sorting electronic components, the electronic parts test sorting machine is Usually including sensors, a vision system, and a powerful drive system-cam indexing table-to guarantee the fast and correct processing of vast numbers of components, it is On manufacturing lines, this tool may improve accuracy and output.
Drawings and core parameters
60DF
Products Features
High Precision Control
By obtaining extremely high positioning accuracy, the cam indexer provides correct classification and testing of every component, hence reducing errors.
01
Smooth Operation
The mechanical construction design of the indexer assures smooth motion, thereby lowering vibrations and extending the lifespan of the equipment.
02
Fast Response
Its quick alternation between many motion modes helps to improve the flexibility of the production line by meeting evolving sorting demands.
03
Compact Design
The tiny size of the cam indexer helps one to produce a more basic overall design, thereby saving space and enabling installation in constrained settings.
04
Longevity
The robust construction and material utilization increase the lifetime of the equipment, therefore enabling consistent operation under high loads for extended durations.
05
Advantages v.s. Disadvantages
Advantages Of Rotary Indexer
High Efficiency
Processing enormous quantities of electronic components rapidly helps production efficiency to be considerably improved.
High Level of Automation
By lowering human errors and manual labor, the general production line dependability is enhanced.
Easy Maintenance
By allowing relatively easy maintenance and component replacement, the design of the cam indexer reduces downtime.
Disadvantages Of Rotary Indexer
Technical Complexity
The operation and maintenance requirements of the equipment call for qualified personnel, thereby increasing training and labor costs.
Risk of Failure
Should the cam indexer or related components fail, the complete production process can halt, therefore affecting output.
Adaptability Limitations
Some original designs or materials of electrical components can require for further modifications or repairs.
Customer case

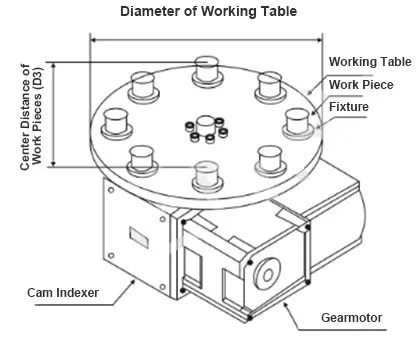

When clients place orders for cam dividers from us, we must first gather their fundamental operating needs-that of the number of stations, rotation time, idle time, load. By means of these fundamental facts, we may develop a first assessment on the fit of the model for the client and implement minor changes. Alternatively, we may create the goods the client needs depending on their designs and make sure the pertinent measurements stay the same. The following is an actual example of model selection by a British customer.
1, Stations Numbers:___20_____
2, Rotation time of each station (the time rotate from the first station to the second station):
t1: 4 Seconds
3, Idle time of each station (the stop time for processing):
t2: 4 Seconds
4, Total weight of loading for Cam Indexer (including turn table, work pieces, fixture, etc)
weight: 5 kg
|
Items |
Symbol |
Data |
Unit |
|
Diameter of Working Table (Turn Table) |
D1 |
350 |
mm |
|
Weight of Working Table (Turn Table) |
W1 |
2 |
kg |
|
PCD of Fixture (Center distance of diagonal fixture) |
D2 |
20 |
mm |
|
Weight of Each Fixture |
W2 |
0,05 |
Kg/pcs |
|
Quantity of Fixture |
N2 |
20 |
pcs |
|
PCD of Work Pieces (Center distance of diagonal fixture) |
D3 |
310 |
mm |
|
Weight of Each Work Piece |
W3 |
Kg/pcs |
|
|
Quantity of Work Pieces |
N3 |
pcs |
|
|
Material of Working Table (Turn Table) steel or aluminum or others, pls specify |
Ss 304 |
||
|
Thickness of Working Table (Turn Table) |
6 |
mm |
Materials Selection
The material used for the production of our 60DF series Indexing Table For Electronic Parts Test Sorting depends on the actual application situation of the customer. There are usually several types of materials to choose from, such as steel, aluminum alloy, etc. For example, the Indexing table for Electronic Parts Test Sorting Machine is made of stainless steel, but our product surface also undergoes some surface processing to prevent corrosion of stainless steel during machine use. And other materials such as aluminum alloy are often used in applications with relatively light loads.
