Hansheng Automation (Dongguan) Co., Ltd. is one of the most experienced manufacturers and suppliers of df cam indexers in China. If you're going to wholesale bulk cost-effective df cam indexers made in China, welcome to get pricelist and quotation from our factory. Also, customized service and OEM&ODM service are available.

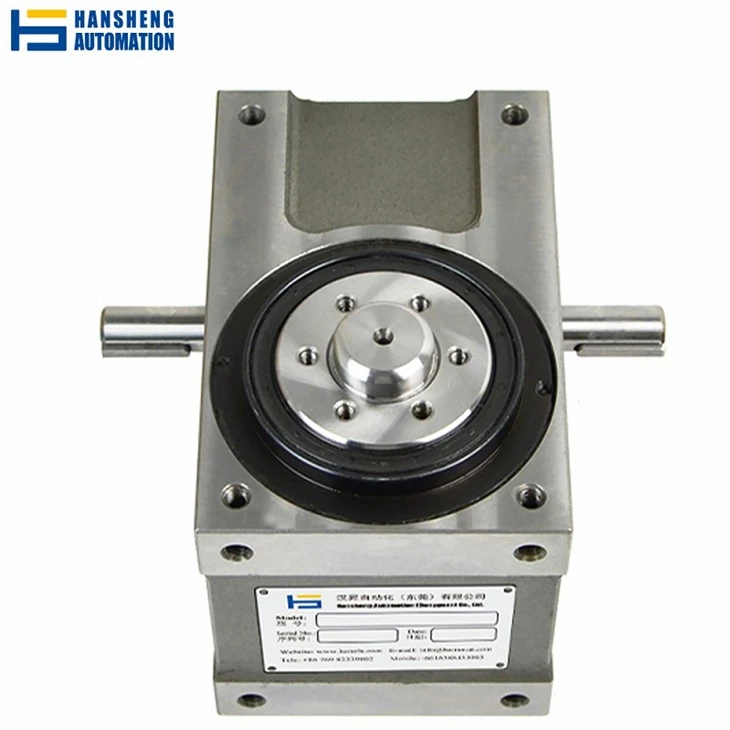

DF Cam Indexers are specialized indexing systems that provide a fast, accurate way to precisely position parts, tools, or assemblies in automated machinery. These indexers have a cam-driven mechanism that fully engages with a mating part and holds it firmly in place, providing secure and stable support for high-speed operations. DF Cam Indexers are used in a wide range of applications, including manufacturing, packaging, and assembly systems. With their rugged construction, reliable performance, and low maintenance requirements, DF Cam Indexers are an essential component in many industrial automation systems.
DF is a common type of Cam Indexers product, featuring high quality, reliability, and durability. The following models 45DF, 60DF, 70DF, 80DF, 110DF, 140DF, 180DF, 250DF are available in Hanson respectively, featuring high quality, reliability, and durability is designed with advanced technology and materials to ensure its efficient operation under various severe working conditions Cam Indexers can be used in a variety of applications, including industries such as automated machinery, printing machinery, aircraft, and automotive manufacturing. In addition, DF Cam Indexers are easy to install and maintain, which can greatly reduce production and maintenance costs. Cam Indexers is a high-performance, high-efficiency, high-quality Cam Indexers products, suitable for a variety of different application scenarios, to provide better and more reliable equipment and tools for various industries.
Model and Main Technical Data
|
Model |
45DF |
60DF |
70DF |
80DF |
110DF |
140DF |
180DF |
250DF |
|
Matched Motor Power (KW) |
0.06/0.09 |
0.09/0.12 |
0.12/0.15 |
0.15/0.2 |
0.4/0.75 |
0.75/1.5 |
1.5/2.2 |
2.2/3.7 |
|
Hollow Shaft Diameter |
8 |
16 |
20 |
30 |
40 |
50 |
60 |
80 |
|
Permissible Output Radial Load (kgf) |
130 |
140 |
220 |
330 |
560 |
760 |
1200 |
3200 |
|
Permissible Output Axial Load (kgf) |
140 |
142 |
300 |
420 |
700 |
1000 |
1500 |
4150 |
|
Indexing Accuracy (Arc sec) |
±30 |
±30 |
±30 |
±30 |
±30 |
±30 |
±30 |
±30 |
|
Weight (kg) |
7.0 |
13.0 |
18.0 |
32.0 |
65.0 |
90.0 |
220.0 |
685.0 |
|
Station Numbers |
2, 3, 4, 5, 6, 8, 10, 12, 15, 16, 20, 24, 30, 32, 36, 40, 48 |
|||||||
|
Installation Surface |
VW 1-6 any surface mounting |
|||||||
|
Speed of Input Shaft (RPM) |
5~800 (Up to actual loading) Pls inform in advance if high speed using |
|||||||
|
Note |
2-12 stations are R1 single lead Above 16 stations are R2.R3.R4 multi leads |
|||||||
Advantages of our products
1. High Quality Bearing
imported NSK Bearing, high quality, low noise, low friction coefficient, high loading capacity roller bearing.
2. Globoidal cam
Alloy steel material, carburizing and tempering process, HRC 60°, high precision grinding, low friction coefficient, high precision, long lifespan.
3. 0il Seal
TTO Oil Seal, high-temperature resistance, compressive wear resistance, oil resistance, good sealing performance, and long service life.
4. Input Shaft
Carburizing and quenching heat treatment process, the carburizing depth reaches 2.7mm, good wear resistance and rigidity, and strong toughness.
5. Output Turret
The precision design and treatment process guarantee a precision lifespan of roller follower and can withstand high-speed and low-speed heavy load applications. Process by high-precision machine tool.
Specific product drawings and parameter examples
110DF
FAQ
