Hansheng Automation (Dongguan) Co., Ltd. is one of the most experienced manufacturers and suppliers of std timing belt in China. If you're going to wholesale bulk cost-effective std timing belt made in China, welcome to get pricelist and quotation from our factory. Also, customized service and OEM&ODM service are available.

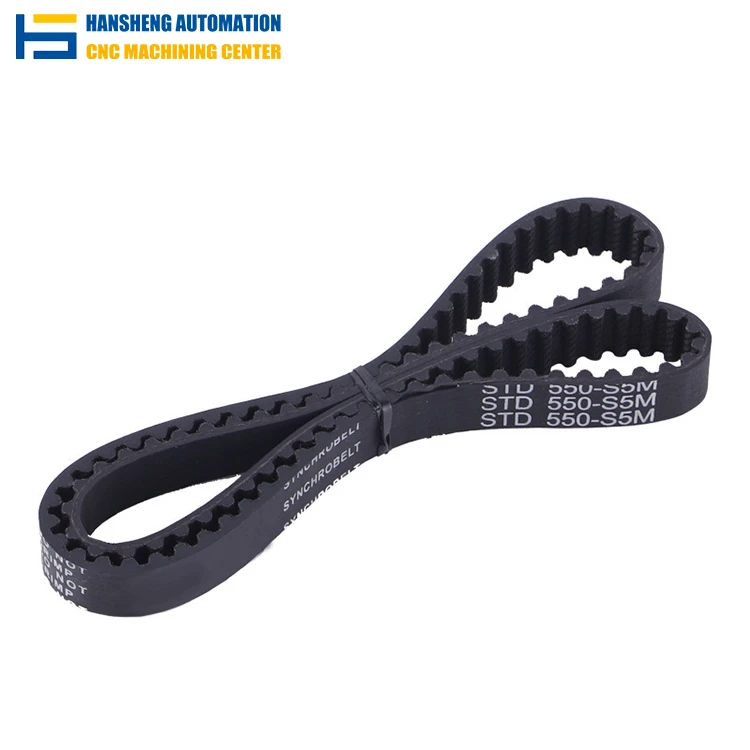

Hansheng Automation's STD timing belts are available in standardized sizes (such as the full range from S2M to S14M) or customized sizes based on the packaging machinery's transmission torque and installation space requirements, ensuring precise engagement with components such as conveyor rollers and slitting shafts. Leveraging its expertise in precision manufacturing-from ISO/DIN/GB Grade 5 gear machining (suitable for synchronous pulley transmissions), ±0.002mm ultra-mirror CNC machining (guaranteed for transmission component accuracy), to customized casting capabilities (supporting the transmission structures of large-scale packaging equipment)-Hansheng Automation can also provide supporting components that operate in conjunction with timing belts.

Why Choose STD Profile Belts?

High Torque Capacity

Transmits up to 1.5 - 2 times more power than standard trapezoidal timing belts (like XL, L, H series).

Anti-Jumping (No Slippage)

The deep tooth engagement prevents tooth jumping (ratcheting) during sudden starts or stops.

Ultra-Low Noise

The involute engagement reduces the "polygon effect" and air compression noise, making it ideal for quiet environments.

Tooth Profile & Dimensions

Belt Type	Pitch (p)	Tooth Height (ht)	Belt Thickness (hs)
S2M	2.0 mm	0.76 mm	1.36 mm
S3M	3.0 mm	1.14 mm	1.90 mm
S4.5M	4.5 mm	1.71 mm	2.81 mm
S5M	5.0 mm	1.91 mm	3.40 mm
S8M	8.0 mm	3.05 mm	5.30 mm
S14M	14.0 mm	5.30 mm	10.20 mm

Material & Construction

Our STD timing belts are engineered with a 3-layer structural design to ensure zero-maintenance operation:

Tension Cord (Fiberglass / Kevlar)

High tensile strength glass-fibre cords prevent elongation and belt stretch under high-load conditions.

Belt Body (Neoprene / PU)

Made from high-quality Chloroprene rubber (CR) or Polyurethane (PU), offering excellent resistance to oil, heat, and flex fatigue. Operating temperature ranges from -20°C to +100°C.

Tooth Facing (Nylon Fabric)

A tough, wear-resistant nylon cover protects the tooth surfaces, reducing friction and extending the belt's lifespan.

Standard Widths Guide

We offer custom cutting services for sleeve widths. Below are the standard width options for different STD pitches:

S2M / S3M: 6mm, 9mm, 15mm
S5M: 9mm, 15mm, 25mm
S8M: 15mm, 20mm, 25mm, 30mm, 40mm
S14M: 40mm, 50mm, 85mm, 115mm

(Note: Custom widths and open-end STD belts are also available upon request.)

STD Timing belt models

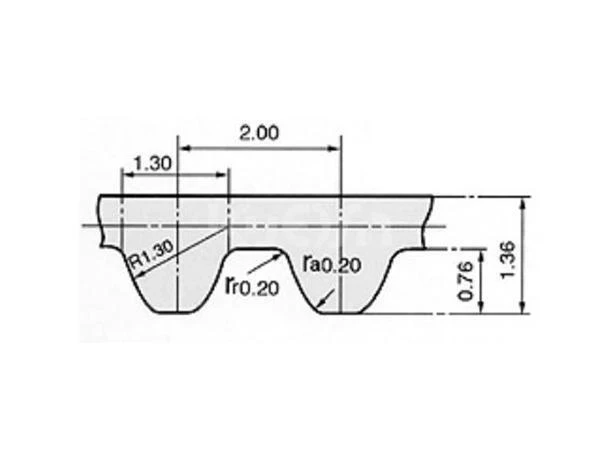

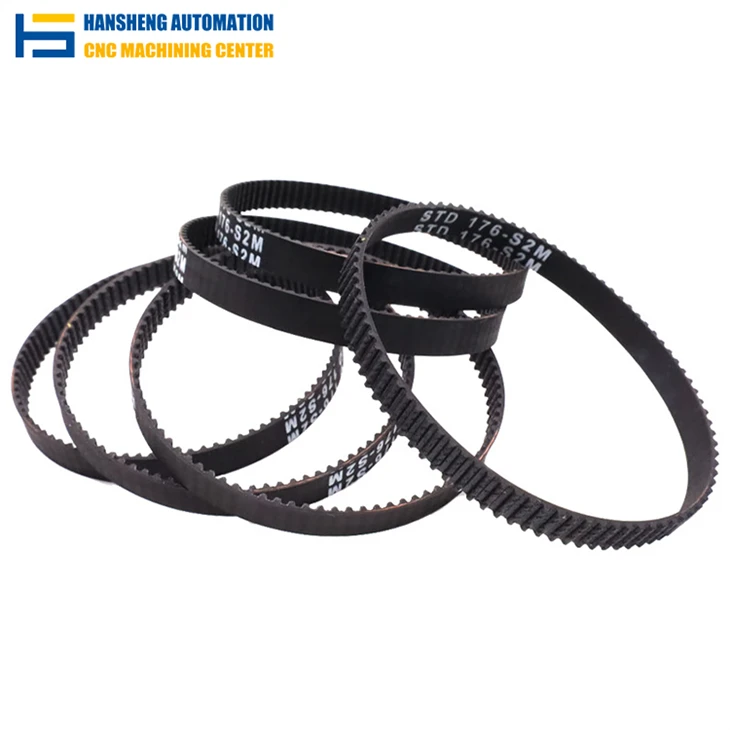

STD 2M

STD2M

STD 2M Type Timing Belt Specifications

Type	Pitch Length	Teeth
S2M-60	60	30
S2M-66	66	33
S2M-80	80	40
S2M-88	88	44
S2M-90	90	45
S2M-96	96	48
S2M-98	98	49
S2M-100	100	50
S2M-102	102	51
S2M-104	104	52
S2M-106	106	53
S2M-108	108	54
S2M-110	110	55
S2M-112	112	56
S2M-114	114	57
S2M-118	118	59
S2M-120	120	60
S2M-122	122	61
S2M-124	124	62
S2M-128	128	64
S2M-130	130	65
S2M-132	132	66
S2M-134	134	67
S2M-140	140	70
S2M-142	142	71
S2M-144	144	72
S2M-146	146	73

STD 3M

STD3M

STD 3M Type Synchronous Belt Specifications

Type	Pitch Length	Teeth
S3M-120	120	40
S3M-129	129	43
S3M-144	144	48
S3M-147	147	49
S3M-150	150	50
S3M-156	156	52
S3M-159	159	53
S3M-162	162	54
S3M-165	165	55
S3M-171	171	57
S3M-174	174	58
S3M-177	177	59
S3M-180	180	60
S3M-183	183	61
S3M-186	186	62
S3M-189	189	63
S3M-192	192	64
S3M-195	195	65
S3M-201	201	67
S3M-204	204	68
S3M-207	207	69
S3M-210	210	70
S3M-213	213	71
S3M-219	219	73
S3M-222	222	74
S3M-225	225	75

STD 4.5M

STD45M

STD 4.5M Type Synchronous Belt Specifications

Type	Pitch Length	Teeth
S4.5M-162	162	36
S4.5M-180	180	40
S4.5M-198	198	44
S4.5M-203	203	45
S4.5M-225	225	50
S4.5M-239	239	53
S4.5M-252	252	56
S4.5M-275	275	61
S4.5M-279	279	62
S4.5M-284	284	63
S4.5M-297	297	66
S4.5M-315	315	70
S4.5M-329	329	73
S4.5M-333	333	74
S4.5M-338	338	75
S4.5M-347	347	77
S4.5M-351	351	78
S4.5M-360	360	80
S4.5M-369	369	82
S4.5M-378	378	84
S4.5M-396	396	88
S4.5M-414	414	92
S4.5M-450	450	100
S4.5M-468	468	104
S4.5M-491	491	109
S4.5M-500	500	111
S4.5M-504	504	112

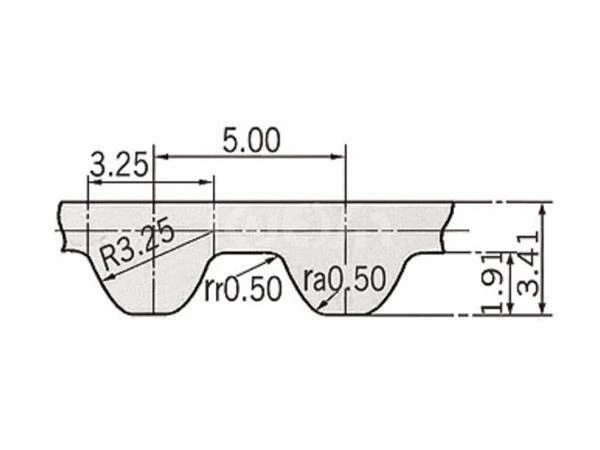

STD 5M

STD5M

STD 5M Type Synchronous Belt Specifications

Type	Pitch Length	Teeth
S5M-150	150	30
S5M-180	180	36
S5M-200	200	40
S5M-225	225	45
S5M-250	250	50
S5M-255	255	51
S5M-260	260	52
S5M-270	270	54
S5M-275	275	55
S5M-280	280	56
S5M-285	285	57
S5M-295	295	59
S5M-300	300	60
S5M-320	320	64
S5M-325	325	65
S5M-330	330	66
S5M-340	340	68
S5M-345	345	69
S5M-350	350	70
S5M-355	355	71
S5M-360	360	72
S5M-370	370	74
S5M-375	375	75
S5M-385	385	77
S5M-390	390	78

STD 8M

STD8M

STD 8M Type Synchronous Belt Specifications

Type	Pitch Length	Teeth
S8M-352	352	44
S8M-376	376	47
S8M-384	384	48
The following can be done on both sides
S8M-400	400	50
S8M-408	408	51
S8M-424	424	53
S8M-432	432	54
S8M-440	440	55
S8M-480	480	60
S8M-496	496	62
S8M-512	512	64
S8M-520	520	65
S8M-528	528	66
S8M-536	536	67
S8M-552	552	69
S8M-560	560	70
S8M-576	576	72
S8M-584	584	73
S8M-600	600	75
S8M-624	624	78
S8M-632	632	79
S8M-640	640	80
S8M-656	656	82
S8M-680	680	85

STD 14M

STD14M

STD 14M Type Synchronous Belt Specifications

Type	Pitch Length	Teeth
S14M-966	966	69
S14M-980	980	70
S14M-1050	1050	75
S14M-1120	1120	80
S14M-1190	1190	85
S14M-1246	1246	89
S14M-1344	1344	96
S14M-1400	1400	100
S14M-1456	1456	104
S14M-1512	1512	108
S14M-1540	1540	110
S14M-1652	1652	118
S14M-1736	1736	124
S14M-1750	1750	125
S14M-1764	1764	126
S14M-1806	1806	129
S14M-1890	1890	135
S14M-1960	1960	140
S14M-2002	2002	143
S14M-2100	2100	150
S14M-2240	2240	160
S14M-2310	2310	165
S14M-2380	2380	170
S14M-2450	2450	175

The specs and product measurements for several STD Timing Belts' models ( partial list) are shown here. It should be noted that the S2M model cannot be made with double-sided teeth, the S3M model can be made with double-sided teeth for certain specifications, the S4.5M model cannot be made with double-sided teeth, the S5M model can be made with double-sided teeth for certain specifications, the S8M model can be made with double-sided teeth for most specifications, and the S14M model can be made with double-sided teeth for all specifications.
