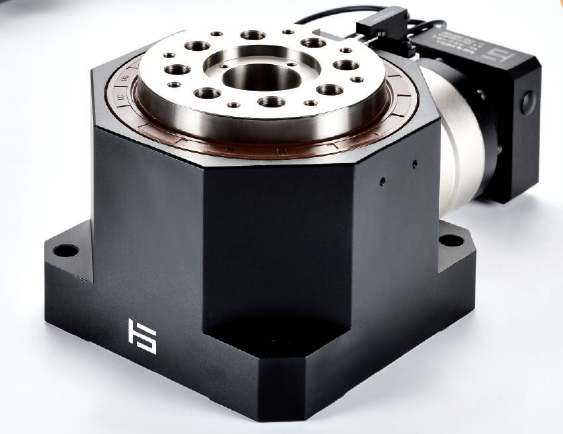

The rise of the right angle structure hollow shaft hollow rotation platform can enable the direction of the output port of the hollow shaft hollow rotation platform to be according to its own needs, and it also has a second deceleration motion integrated symmetrical design. So, what are the characteristics of the right angle/corner hollow rotation platform?
1. Hollow design for easy wiring
The rotary table of the hollow rotating platform is designed with a hollow design, and the servo connection is on the side, making it easy to install pipes and wires in the fixture.
2. High rigidity
The rotary table of the servo hollow rotating platform in the corner series is supported by a complete set of high-precision cross roller bearings, with the roller bearings arranged in a 90 degree staggered pattern. And the diameter of the roller bearing is slightly larger than the guide roller specification between the inner and outer rings of the bearing, which can provide axial force between the inner and outer rings of the cross roller bearing and the roller bearing. Therefore, the hollow rotating platform turntable type of the rolling bearing can withstand various force distances such as radial sum, shaft diameter, and tilting, and its rigidity is 10 times that of ordinary bearings.
3. High transmission accuracy
After the assembly of the servo hollow rotary platform in the corner series is completed, the cross roller bearings on the platform are used as the rotation center, and milling is carried out again towards the diameter and surface of the rotary table to ensure the symmetry and end vibration of the rotary table and other dimensional tolerances.
4. Strong distance and low side clearance
The servo hollow rotating platform of the steering angle series uses planetary deceleration motion to increase the working output torque. The speed ratio of the reducer ranges from 1 to 1536, and the range of working output torque is relatively large, which can meet the requirements of different force distances. In addition, by adjusting the gear center distance to clear the backlash, the reverse side of the Z-series servo hollow rotating platform can be removed from being close to zero clearance, with precision comparable to DD motors.
5. Equipped with a 0-point control switch and equipped with a limit travel switch
The servo hollow rotating platform of the corner series is equipped with photoelectric sensors and induction chips as standard. In addition, it can be equipped with positive and negative limit position travel switches, which facilitates zero point adjustment in electrical equipment and simplifies the process of mechanical equipment design.
6. Dust and waterproof
The servo hollow rotating platform of the corner series adopts a skeleton seal to isolate the inside and outside of the rotating platform, achieving a dust and waterproof level of 1IP65, which meets the needs of working in harsh environments such as dust, water seepage, and heavy humidity.
