Name: PU Cam Indexing Tables
Brand: Hansheng
SKU: 234321181

Hansheng PU series platform conjugate indexers contain two plate cams fixed on the inlet shaft and a roller turret that rotates with the cams to drive the output shaft. The PU type indexers are designed with a parallel conjugate cam mechanism, i.e., the indexing function of the output shaft is achieved by the operation of the roller turret rotated by the rotation of the two plate cams engaged on the input shaft.

The PU cam indexer is mainly suitable for rotary belt drives with long distances or for intermittent indexing with long dwell times. In addition, Hansheng also offers three-piece cam indexers, which are more suitable for some fast and long pitch rotary conveyors with longer dwell times than two-piece cam indexers.

Paradex model, consisting of two cam discs mounted on the input shaft and a ring gear carrying the cam mechanism on the output shaft. This indexing actuator has a flat cam mechanism, in which the cam on the input contacts the two cam discs that transmit rotation to the ring gear on the output shaft. It is best suited for driving conveyor belts travelling at long feed intervals, or for intermittent shifts that stop at long intervals. The other type is the heavy-duty three-disc cam. It is better suited for fast conveyor movements, longer intervals between stops, and longer feed distances.

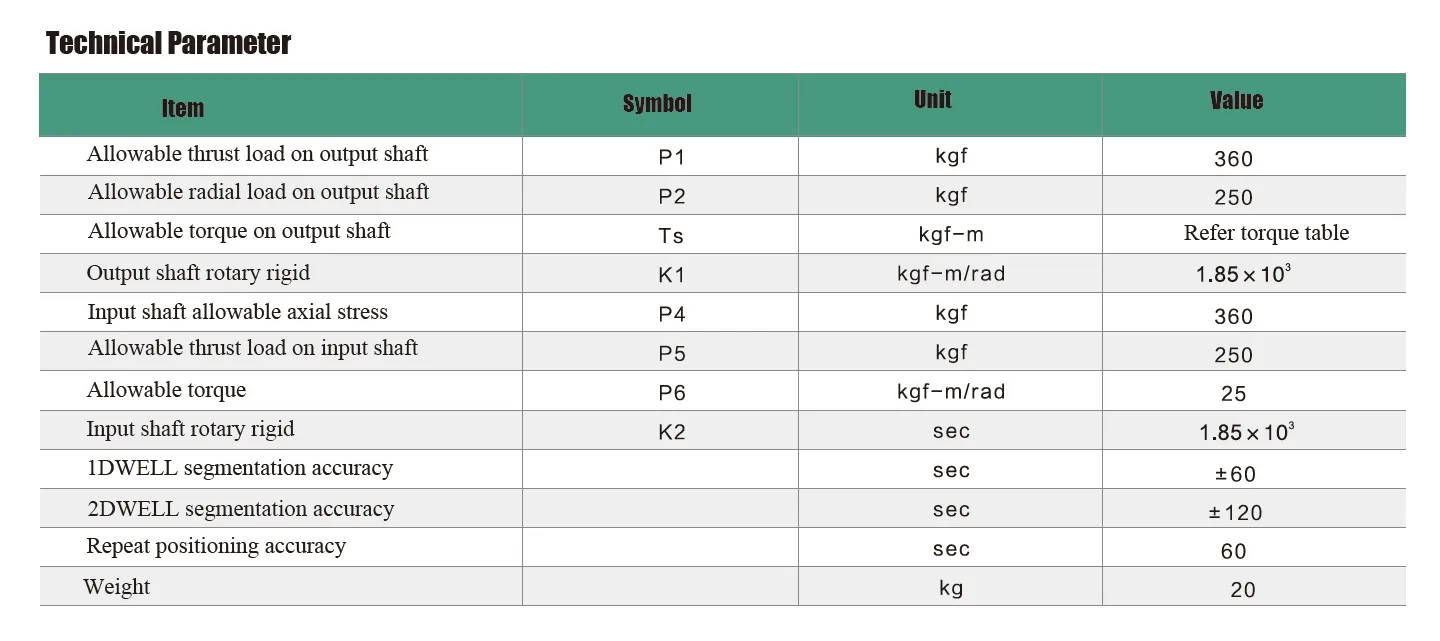

Model and Main Technical Data

Model	PU50DS	PU60DS	PU65DS	PU80DS	PU100DS	PU125DS	PU150DS	PU175DS	PU225DS	PU250DS	PU320DS
Station Numbers	1, 2, 3, 4, 5, 6, 8
Installation Surface	Refer to drawing
Speed of Input Shaft (RPM)	5~300 (Up to actual loading) Pls inform in advance if high speed using

Cam Indexing Tables are mechanical devices used to position or rotate work materials or devices in predetermined positions. They are widely used in manufacturing, including automotive, electronics, medical, packaging and aerospace industries. The use of these devices has many advantages, including efficiency, reliability and accuracy in the manufacturing process.

Cam Indexing Tables are an interesting tool in automation equipment because they provide superior control and accuracy that greatly improves work efficiency and quality of work. They can also provide companies with more flexible production methods, allowing workers to focus on higher-end manufacturing activities. Additionally, these devices ensure fewer work interruptions, thereby increasing efficiency and productivity. It also supports the automation of production and has a wide range of configuration options. Because Cam Indexing Tables are designed to be very flexible, they can be specifically tailored to production requirements, including work area size, index offset, and rotation resolution. This design flexibility makes Cam Indexing Tables an essential tool for most manufacturers.

As a professional indexer manufacturer, we always insist on serving our customers with a positive attitude. We always keep in mind the corporate purpose of "quality first, customer first" and provide customers with high-quality products and excellent after-sales services in a sincere and professional spirit.
