Hansheng Automation (Dongguan) Co., Ltd. is one of the most experienced manufacturers and suppliers of harmonic drive gearheads in China. If you're going to wholesale bulk cost-effective harmonic drive gearheads made in China, welcome to get pricelist and quotation from our factory. Also, customized service and OEM&ODM service are available.
As a professional precision engineering manufacturer and component supplier for tobacco packaging and processing equipment, Hansheng Automation offers more than just Harmonic Drive Gearheads for robotic arms. Our expertise includes gear manufacturing (module 0.1-5.0, ISO/DIN/GB Grade 5), CNC machining with a superb finish of ±0.002mm, and precision castings with a maximum machining size of 3800*1500*1200. These capabilities enable us to offer a wide variety of components for your equipment, and we also support custom manufacturing.

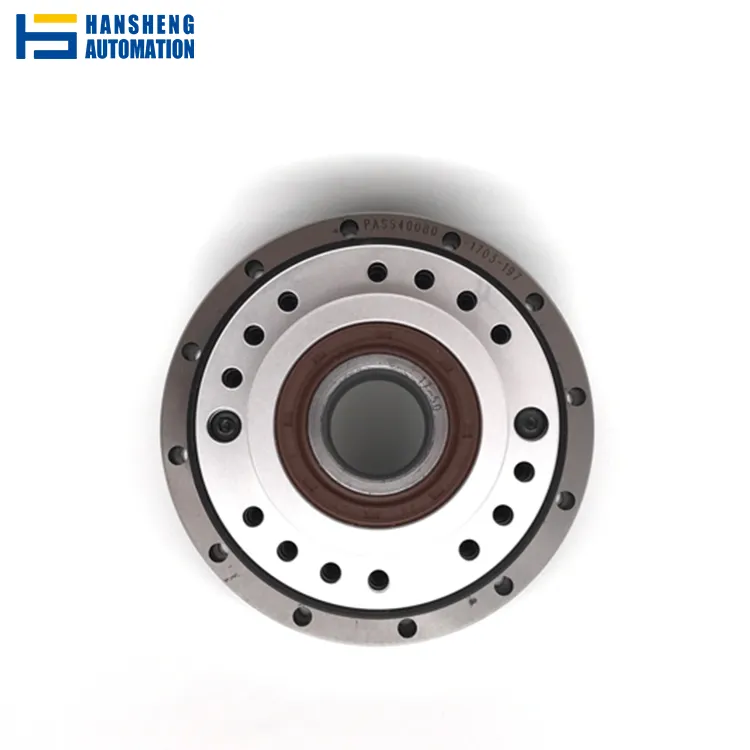

Product Introduction
- The spindle adjustable type (SHF-I) is characterized by compactness, high torque capacity, and high rigidity, and the waveform generator automatically adjusts the spindle for ease of use.
01
Wave Generator Automatic Adjust Spindle, Easy to Use
02
Compact Structure
03
High Torque Capacity
04
High Rigidity
Drawings and parameters
If you need more parameter information of this model or other models, please consult our sales. This drawing is for reference only, and we can modify it according to the customer's working conditions and needs. We will confirm the drawing with the customer before ordering
Application
Be used in a wide range of industries.
How to improve the efficiency of Harmonic Drive Gearheads?
Correct selection of harmonic reducer: It is necessary to choose a suitable harmonic reducer based on factors such as transmission ratio, load-bearing capacity, and working temperature to improve its efficiency.
Reasonable use: Avoiding high or low workloads, as well as using in high-temperature environments, can prolong the service life of harmonic reducers.
Maintenance: Timely replacement of lubricating oil, inspection of gear wear and other maintenance measures can effectively improve the efficiency of harmonic reducers.
What is the difference between this product and an RV reducer?
1, Technical Characteristics
RV reducer: Transmission is accomplished through multi-stage reduction, usually consisting of the front stage of planetary gear reducer and the rear stage of cycloidal pinwheel reducer, with a great number of components;
Harmonic drive: Mostly consisting of three primary components-flexible wheels, steel wheels, and wave generators-harmonic drive involves transmission of motion by elastic deformation of flexible wheels. Harmonic reducers have much less materials, volume, and weight utilized than RV and other precision reducers.
2, Product effectiveness
RV reducer: Large volume, high load capacity, and great rigidity define RV reducer;
Harmonic drive: Harmonic drive has small size, high transmission ratio and great accuracy.
3, Utilization scenarios
RV reducer: Usually utilized in multi-joint robots at heavy load positions like the base, arms, and shoulders, RV reducers;
Harmonic drive: Robot forearms, wrists, or hands mostly feature harmonic drives.
4, Terminal field
RV reducer: Industries include transportation, port terminals, and manufacturing make heavy load robots with RV reducers regular use;
Harmonic drive: Industries like 3C, semiconductors, food, injection molding, molds, and healthcare routinely use robots with a burden of less than 30kg consisting of harmonic reducers.
how to choose a suitable Harmonic Drive Gearheads?
Our company provides free selection services and has a professional team of engineers to design suitable and satisfactory solutions for customers one-on-one. The solutions we have designed for customers have always been highly recognized and praised by customers.
If it was not confirmed the model you need, please provide the following information to us, our engineer shall make calculation and verify the model.
1. What is the speed?
2. What is the reduction ratio?
3. What is the load weight?
4. If it is convenient, can you tell us where it is used? Do you have pictures or drawings?
5. Do you need us to provide flanges, motors or other accessories?
How to improve the efficiency of harmonic drives?
1, Correct selection of harmonic reducer: It is necessary to choose a suitable harmonic reducer based on factors such as transmission ratio, load-bearing capacity, and working temperature to improve its efficiency.
2, Reasonable use: Avoiding high or low workloads, as well as using in high-temperature environments, can prolong the service life of harmonic reducers.
3, Maintenance: Timely replacement of lubricating oil, inspection of gear wear and other maintenance measures can effectively improve the efficiency of harmonic reducers.
What are the factors that affect the transmission efficiency of harmonic drives?
1, Environmental temperature: Under the same conditions, the higher the environmental temperature, the higher the transmission efficiency. (PS: higher temperature, better lubrication effect)
2, Speed: The higher the speed, the lower the efficiency.
3, Speed ratio: The higher the speed ratio, the lower the efficiency under the same conditions.
4, Load: Under the same conditions, the larger the load, the higher the efficiency.
